Filler PE / Pet Extruder Machine , 350kg / H Twin Screw Plastic Extruder

Sichuan Advance technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Filler PE / Pet Extruder Machine , 350kg / H Twin Screw Plastic Extruder from wholesalers

    Buy cheap Filler PE / Pet Extruder Machine , 350kg / H Twin Screw Plastic Extruder from wholesalers
    • Buy cheap Filler PE / Pet Extruder Machine , 350kg / H Twin Screw Plastic Extruder from wholesalers

    Filler PE / Pet Extruder Machine , 350kg / H Twin Screw Plastic Extruder

    Ask Lasest Price
    Brand Name : ADVS
    Model Number : HPL35
    Certification : ISO9001
    Price : USD 63000-250000
    Payment Terms : T/T
    Supply Ability : 300 sets per year
    Delivery Time : 90 days after payment of deposit
    • Product Details
    • Company Profile

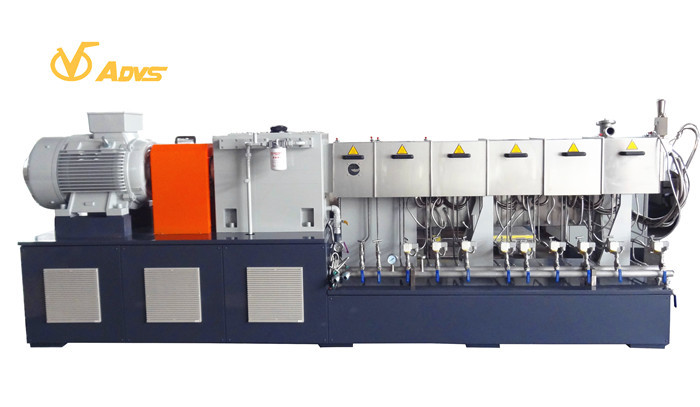

    Filler PE / Pet Extruder Machine , 350kg / H Twin Screw Plastic Extruder

    PP PE Filler Masterbatch extruder pellet line of HPL51 output 350kg/h


    Product Description


    HPL51 twin screw extruder is successfully applied in filler masterbatch granule production. For the high torque, it has higher output and lower temperature than other low torque extruders.


    Application

    Color masterbatch: PE,PET

    Filler masterbatch: PE,PET+CaCO3


    Technical data

    Screw diameter51mm
    Plastic processedLDPE,LLDPE,HDPE,EVA,PVC,PP,PET,ABS,PC,PA
    L/D48:1
    Main motor90kw
    Screw Speed60-600rpm
    Torque of single shaft716N. m
    T/A310Nm/cm3
    Center distance42mm
    OD/ID1.55
    Heating power53KW
    Material of screw elementPM-HIP alloy with high wear resistance
    Material of screw shaftFINLAND WR15E
    Material of barrel linerPM-HIP alloy with high wear resistance
    Output (kg/h)300~350

    Filler PE / Pet Extruder Machine , 350kg / H Twin Screw Plastic Extruder

    Our advantages


    1. High output

    The output is 1-2 times larger than the same size extruder from other lower torque twin screw extruders.

    The biggest extruder can output up to 12T/h per set.


    2. Energy-saving

    For the same output , our small size extruder can replace the big size of other extruder, such as our HPL51 has more output than other 65 extruder , smaller extruder, less energy consumption,less material consumption, smaller production areas.

    And we use heat rod instead of cast copper heater, which can save 15%-20% energy.


    3. Advanced design

    High torque: carrying capacity factor of gearbox up to 15Nm/cm3;

    High speed: max. 1800rpm/m;


    4. Long service life

    bearings on output shaft 2 without load, which greatly extended the service life of the bearings on the weak axis , gearbox life can reach 72000 hours (10 years);


    5. Custom made design

    Wide D/d choice:1.33~2.0;

    Custom made clearance: minimum clearance can be 0.15mm;


    About us


    We are dedicate to develop, design, and manufacture co-rotation, counter-rotation parallel twin-screw extruder production line.Our extruders have the advantages of “high torque, high efficiency, low energy-consumption, high price/performance ratio, long service life ” (designed service life of gearbox as long as 72000 hrs). We keep the same step with the most advanced extruder manufaturers in the world.

    We can supply :Twin screw extruder production line;

    High torque gearbox;Automatic long fiber reinforced thermoplastic composites (LFT - D) production line;Counter-rotation parallel twin screw extruder;Differential concentration mixer;

    Repairing and machining large parts; Design, machine all of screw elements on Japan and Germany extruders.


    Parts and advantages


    Transmission gearboxFiller PE / Pet Extruder Machine , 350kg / H Twin Screw Plastic ExtruderThe most advanced structure: bilateral symmetry gear drive system; it’s the same with the gearbox of German Flanders, Austria EssenBas.Now, the first-line extruder manufacturers in the world, such as Corperion,Berstorff, Leistritz, Toshiba, JSW are using the transmission structure; servcie life of the gearbox≥72000hrs.
    Screw elementFiller PE / Pet Extruder Machine , 350kg / H Twin Screw Plastic Extruder

    Various kinds of function elements, mixing and dispersing

    elements developed by ourselves can provie flexible production for kinds

    of materials and production process.

    Optional material: W6Cr5Mo4V2, Ni-based alloy, HIP alloy,Co-based alloy.

    BarrelFiller PE / Pet Extruder Machine , 350kg / H Twin Screw Plastic Extruder

    Barrels are equipped with integrated wear-resistant alloy steel liner, which has the same composition and wearing feacture with W&P .Our mirror polishing seamless barrels, surface finish Ra0.2,

    verticality between barrels inner hole≤0.015mm;linearity of ten assembled barrels≤0.05mm;

    Optional material: W6Cr5Mo4V2, Nitriding steel, Tool steel, Ni-based alloy, HIP alloy,Co-based alloy.

    Torque limiter

    Filler PE / Pet Extruder Machine , 350kg / H Twin Screw Plastic Extruder

    Steel ball type safety clutch + torque limiter

    Made in Germany have the characteristics of accurate torque protection, high repeatability and quick reset.
