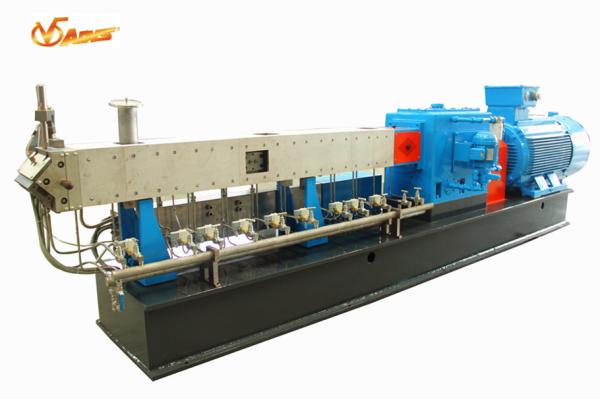

HPL65 twin screw extruder line for glass fiber reinforced with PBT
Product Description
HPL65 twin screw extuder line can be used for producing glass fiber reinforced witt PA66/PA6/PBT .For the high torque, it has higher output and
lower temperature than other low torque extruders.And uniform screw
clearance enables uniform despersion, with retaining fibre length.
.
Technical data
| Model | PZE65 | PZE65 | PZE65 | HPL65 | HPL65 |
| Parameter |
Screw diameter
(mm) | 62.5 | 62.5 | 62.5 | 62.5 | 62.5 |
| L/D | 36-44 | 36-44 | 36-44 | 36-44 | 36-44 |
Main motor
(kw) | 110 | 132 | 160 | 200 | 250 |
Max. Speed
(rpm) | 450 | 550 | 670 | 600 | 670 |
T/A3
(Nm/cm3) | 8.3 | 8.2 | 8.2 | 11.3 | 12.7 |
Center distance
(mm) | 52 | 52 | 52 | 52 | 52 |
| OD/ID | 1.54 | 1.55 | 1.55 | 1.55 | 1.55 |
| Material of shaft | 40CrNiMo | 40CrNiMo | 40CrNiMo | WR15E | WR15E |
| Output (kg/h) | 300～450 | 400～550 | 500～650 | 550～700 | 600～800 |
Our advantages
1. High output
The output is 1-2 times larger than the same size extruder from
other lower torque twin screw extruders.
The biggest extruder can output up to 12T/h per set.
2. Energy-saving
For the same output , our small size extruder can replace the big
size of other extruder, such as our HPL51 has more output than
other 65 extruder , smaller extruder, less energy consumption,less
material consumption, smaller production areas.
And we use heat rod instead of cast copper heater, which can save
15%-20% energy.
3. Advanced design
High torque: carrying capacity factor of gearbox up to 15Nm/cm3;
High speed: max. 1800rpm/m；
4. Long service life
bearings on output shaft 2 without load, which greatly extended the
service life of the bearings on the weak axis , gearbox life can
reach 72000 hours (10 years)；
5. Custom made design
Wide D/d choice:1.33～2.0;
Custom made clearance: minimum clearance can be 0.15mm；
Parts and advantages
| Transmission gearbox |  | The most advanced structure: bilateral symmetry gear drive system;
it’s the same with the gearbox of German Flanders, Austria
EssenBas.Now, the first-line extruder manufacturers in the world,
such as Corperion,Berstorff, Leistritz, Toshiba, JSW are using the
transmission structure; servcie life of the gearbox≥72000hrs. |
| Screw element |  | Various kinds of function elements, mixing and dispersing
elements developed by ourselves can provie flexible production for
kinds
of materials and production process.
Optional material: W6Cr5Mo4V2, Ni-based alloy, HIP alloy,Co-based
alloy. |
| Barrel |  | Barrels are equipped with integrated wear-resistant alloy steel
liner, which has the same composition and wearing feacture with
W&P .Our mirror polishing seamless barrels, surface finish
Ra0.2,
verticality between barrels inner hole≤0.015mm；linearity of ten
assembled barrels≤0.05mm；
Optional material: W6Cr5Mo4V2, Nitriding steel, Tool steel,
Ni-based alloy, HIP alloy,Co-based alloy. |
| Torque limiter |
| Steel ball type safety clutch + torque limiter
Made in Germany have the characteristics of accurate torque
protection, high repeatability and quick reset. |
| Side feeder |  | Our CWJ series side feeder can be used to feed powders and short
fibres, which can improve the output and reduce abrasion of scew
and barrels. And segmented screws available. Barell with cooling
function is available. |
About us
We are dedicate to develop, design, and manufacture co-rotation,
counter-rotation parallel twin-screw extruder production line.Our
extruders have the advantages of “high torque, high efficiency, low
energy-consumption, high price/performance ratio, long service life
” (designed service life of gearbox as long as 72000 hrs). We keep
the same step with the most advanced extruder manufaturers in the
world.
We can supply :Twin screw extruder production line;
High torque gearbox;Automatic long fiber reinforced thermoplastic
composites (LFT - D) production line;Counter-rotation parallel twin
screw extruder;Differential concentration mixer;
Repairing and machining large parts; Design, machine all of screw
elements on Japan and Germany extruders.
